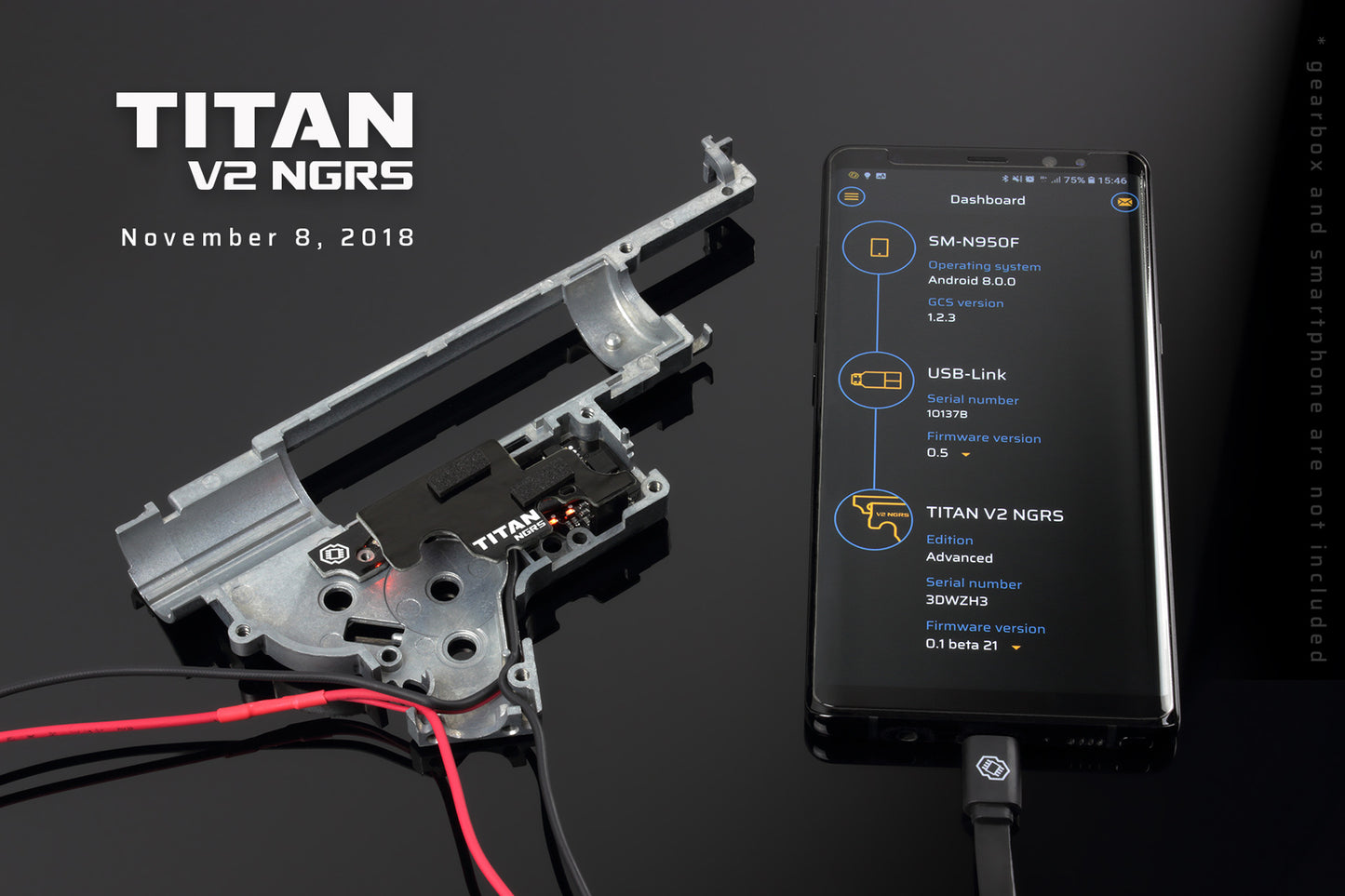

Transform your Tokyo Marui Next Generation AEG into an advanced training system. Adjust your replica and check the stats using a Blu-Link or USB-Link and the GATE Control Station App. TITAN V2 NGRS has a whole new trigger sensor, which allows you to set hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement. The innovative 3rd generation trigger sensor offers you even 460 possible sensitivity settings. Gain a unique tactical advantage thanks to the extremely fast trigger response and lots of other useful functions. Boost your AEG with computerized technology. Give your AEG a new lease of life!

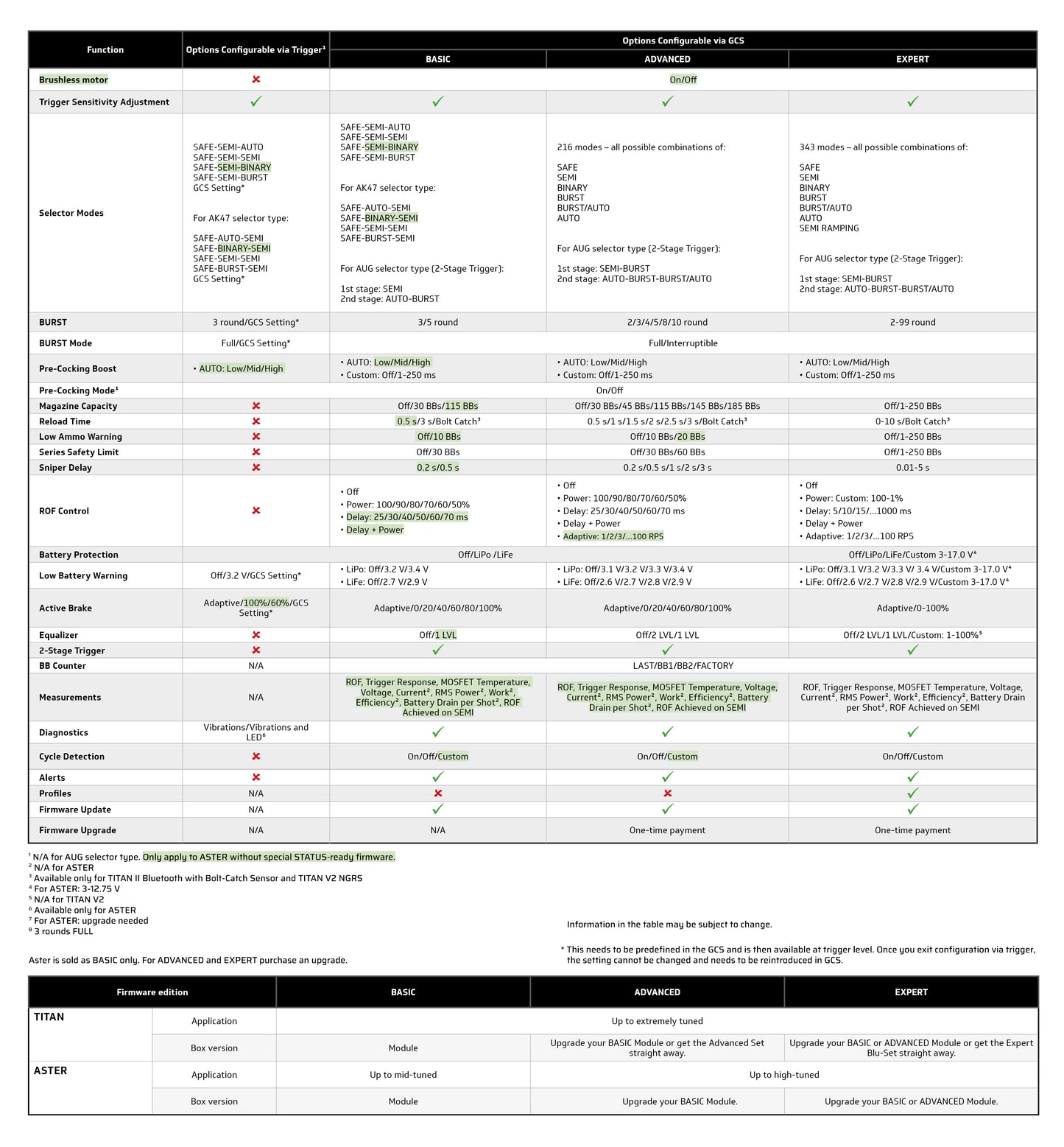

SPECIFICATIONS
-
Download GCS App
GCS APP
TITAN and GCS App give you total control of your AEG. ㅤ
ㅤ
The GCS offers you the option to:
• Control your airsoft gun from a smartphone with Android, iOS and PC with Windows or macOS
• Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win
• No more surprises with an empty magazine or a discharged battery
• Easily adjust the TITAN settings during the game
• Update and upgrade firmware
• View the BB counters, electrical measurements, and statistics
• Perform diagnostics and send reports
• Get the latest news from GATE Enterprise
ㅤ
-
FEATURES

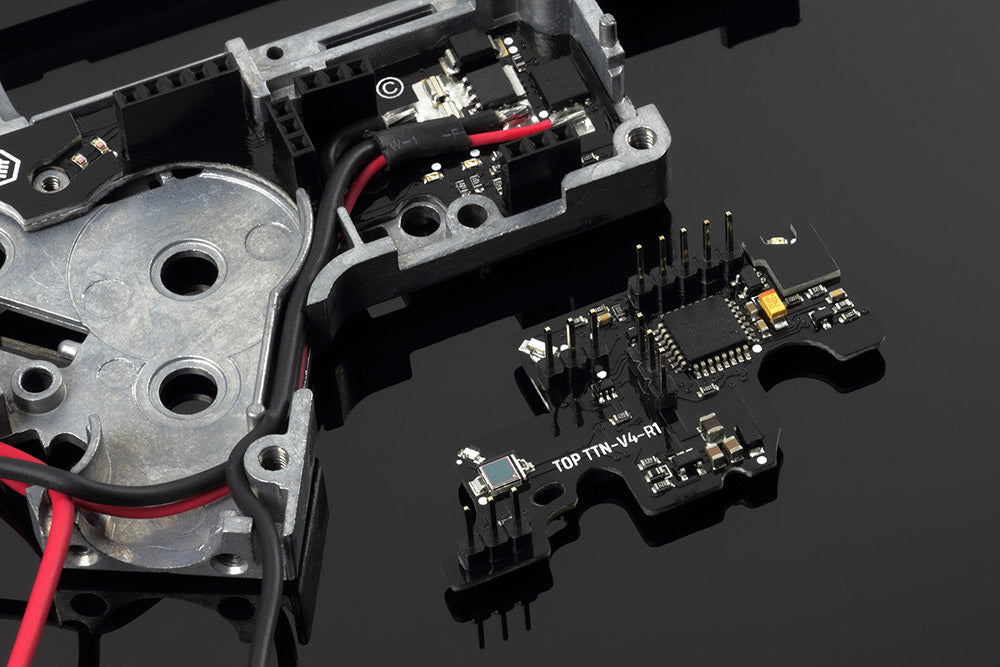

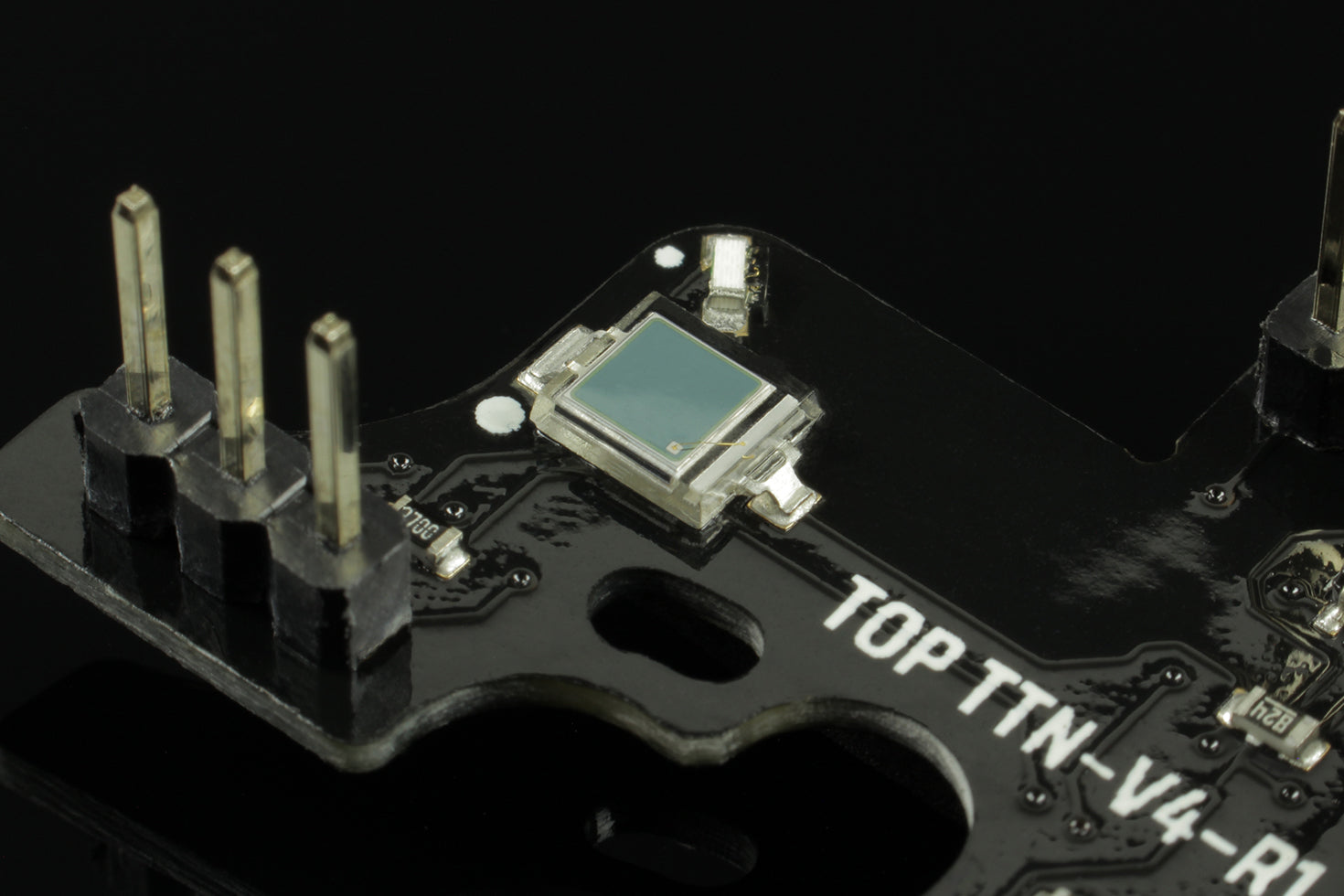

TRIGGER SENSOR
Thanks to the precise 3rd generation trigger sensor you can set trigger sensitivity with ludicrous precision: at least 50 sensitivity levels for the first millimeter of trigger movement. Depending on trigger construction, it enables even 420 possible sensitivity settings. You do not have to disassemble your AEG. Just use the GATE Control Station App and adjust the trigger to your preferences and level of skills.
BOLT CATCH
The Bolt catch sensor supports empty magazine detection, which gives full compatibility with Tokyo Marui V2 Next Generation Recoil Shock.
SELECTOR MODES
You can set 1 of the 7 options in each Selector position. Besides the SAFE, SEMI, AUTO, and BURST modes, there is the BINARY trigger — a single BB is fired when the trigger is pressed and another one when the trigger is released; SEMI Ramping – quickly squeezing the trigger turns on AUTO mode; BURST/AUTO – pulling the trigger quickly sets BURST and holding it down sets AUTO.
2-STAGE TRIGGER
Enables you to set two different trigger sensitivities. Pulling the trigger slightly produces SEMI or BURST fire. Pulling it further produces BURST or AUTO fire. Select your sensitivity preferences for each stage.
CYCLE DETECTION
Thanks to the dual gear sensor, TITAN precisely detects in which position the cycle should finish - even in case of Infinite Torque-up gears or TM NGRS gears. Therefore, even the shortest trigger action produces at least one full cycle.
Thanks to the cycle detection function you get:
- Automatic BURST – there is no need to set the burst time. You can set the burst between two and 10 shots;
- Automatic PRE-COCKING – pre-cocking is fully operational in SEMI, BURST and AUTO modes and there is no need to set the pre-cocking boost manually. You can simply set the pre-cocking as high, mid or low;
- FULL CYCLE – when the pre-cocking is off, TITAN ensures that the gearbox completes a full cycle. You gain a higher reliability.
PRE-COCKING
Victory in the game is often a matter of fractions of seconds. Thanks to pre-cocking, you gain trigger reaction similar to a real replica. This allows for initial spring compression, which speeds up trigger response significantly.
There are two Pre-Cocking Modes:
- AUTO Mode – the spring is automatically compressed after each shot—you choose the level of pre-cocking from the list (percentages or levels)
- MANUAL Mode – set the pre-cocking values yourself—instead of percentages there are time settings, you have to choose the time for yourself by trial and error
Pre-Cocking is fully operational in SEMI, BURST, and AUTO Modes
Please note: using Pre-Cocking increases wear and tear on the gearbox.
BURST
BURST enables you to shoot a predetermined number of BBs, which is very useful in MILSIM and when using low-caps.
ROF CONTROL
ROF Control enables the reduction of a replica’s rate of fire. You can use stronger batteries and still have the ROF exactly as you like. Depending on firmware edition, you can choose between Adaptive, Manual PWM, Manual Delay, and Manual Delay + PWM.
Adaptive – set your desired rate of fire; the brake and delay will be automatically adjusted to achieve this value
Manual PWM – set the motor power throughout the duration of the shot
Manual Delay – set the exact delay between shots in milliseconds
Manual Delay + PWM – set braking power and delay manually
SNIPER DELAY
It lets you set the delay between shots or series to simulate the delay from reload or recoil. You can set the delay between 0.01-5 s.
SMART TRIGGER
We know how vital fast trigger response during combat is. That's why we've developed the Smart Trigger function, which enables you to achieve faster trigger response. It works with the ROF Control System. During the first shot, the microprocessor sets the ROF control to 100%. After the first shot, it switches to a previously programmed value (e.g. 50%). As a consequence, the first shot is fired at a full ROF and subsequent shots at a reduced ROF. The best results can be achieved when using a battery with above standard voltage. For example, if you’re using a 7.4 V battery, you can replace it with a 11.1 V one. This way, you will achieve faster trigger response with the same rate of fire than with a standard battery.
*Works only if ROF is decreased using the power settings of ROF control.
BATTERY PROTECTION & WARNINGS
Protection against battery over-discharge. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor is constantly monitoring battery voltage. When voltage drops to a critical level, it will not allow firing. The number of battery cells can be detected automatically.
LOW BATTERY WARNING
When battery voltage drops to a predefined level, the motor will vibrate at regular intervals. The user is warned 5 times before the battery is discharged. Each warning is communicated by 3 vibrations: HIGH → MID → HIGH.
SMART FUSE
The Smart Fuse protects your AEG’s battery, motor, and controller, even in case of reverse battery connection. A combination of current, voltage, and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading, and short-circuiting. If your airsoft gun gets jammed, this function protects the motor and battery against damage.
ACTIVE BRAKE
Thanks to the gear sensor, TITAN precisely detects where the cycle finishes. So, even the shortest trigger action produces at least one full cycle. The optical sector gear sensor counts each tooth of the gear, making it possible to use a broad range of gears: DSG, SSG, 19-tooth, and standard ones. In EXPERT Firmware, you can select the cycle manually.
Thanks to the cycle detection function you get:
AUTOMATIC BURST
You don't need to set the burst time—you can set the burst between 2 and 10 shots
AUTOMATIC Pre-Cocking
Pre-Cocking is fully operational in SEMI, BURST, and AUTO modes and there's no need to set the Pre-Cocking boost manually; you can simply set Pre-Cocking as high, mid or low
FULL CYCLE
When Pre-Cocking is off, TITAN ensures that the gearbox completes a full cycle and you gain more reliability
MOSFET
Do you want to achieve a higher ROF and faster trigger response? Are you planning a power upgrade of your gun? In this case, you need a MOSFET.
It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts. As a result, you gain a higher ROF of the gun and faster trigger response.
BUILT-IN SELF-TEST
This allows you to quickly check whether the drop-in module is working properly. It helps to locate where the problem lies when anything goes wrong.
COATING
Thanks to its special conformal coating, our product is resistant to atmospheric conditions (Military Specification MIL-V-173C).
MAGAZINE
This feature allows for simulating magazines of lower capacity than actually used. Depending on Firmware Edition, allows you to set a simulation of magazine capacity from 1 BB up to 250 BBs. Even if you have a high-capacity magazine, this function lets you truly increase the realism of your game by imitating that your magazine is real-cap. Then, after a predetermined number of BBs is shot, you will have to wait for a previously defined amount of time before the next shot can be fired as if you were really replacing an empty magazine with a full one. You can also set Low Ammo Warning.
SERIES SAFETY LIMIT
Enables to set a predefined number of BBs fired in a single series. It can be used as protection against trigger jams. In case of emergency, you can stop the series by switching the selector position.
EQUALIZER
You don't need to fully release the trigger to fire the next shot. This option is really useful when the trigger sensitivity level is very high. Choose between two types of equalizer.
- OFF - to fire the next shot, you need to release the trigger until it reaches the selected trigger sensitivity level.
- 2LVL - to fire the next shot, just release the trigger until it moves over two adjoining sensors.
- 1LVL - to fire the next shot, just release the trigger until it moves over an adjoining sensor.
NOTIFICATION SETTINGS
You can enable or disable information and warning vibrations, and make your gun stealthy.
DIAGNOSTICS
This feature allows you to troubleshoot your AEG in case of any issue. Errors are communicated once they occur, and their description can be found in the GCS App.
USER PROFILES
Switch between 3 different profiles of saved settings.
FIRMWARE UPDATE
GCS allows for making firmware updates via the internet, which enables you to quickly apply changes, improvements, and bugfixes.
What makes TITAN V2 NGRS so special?
