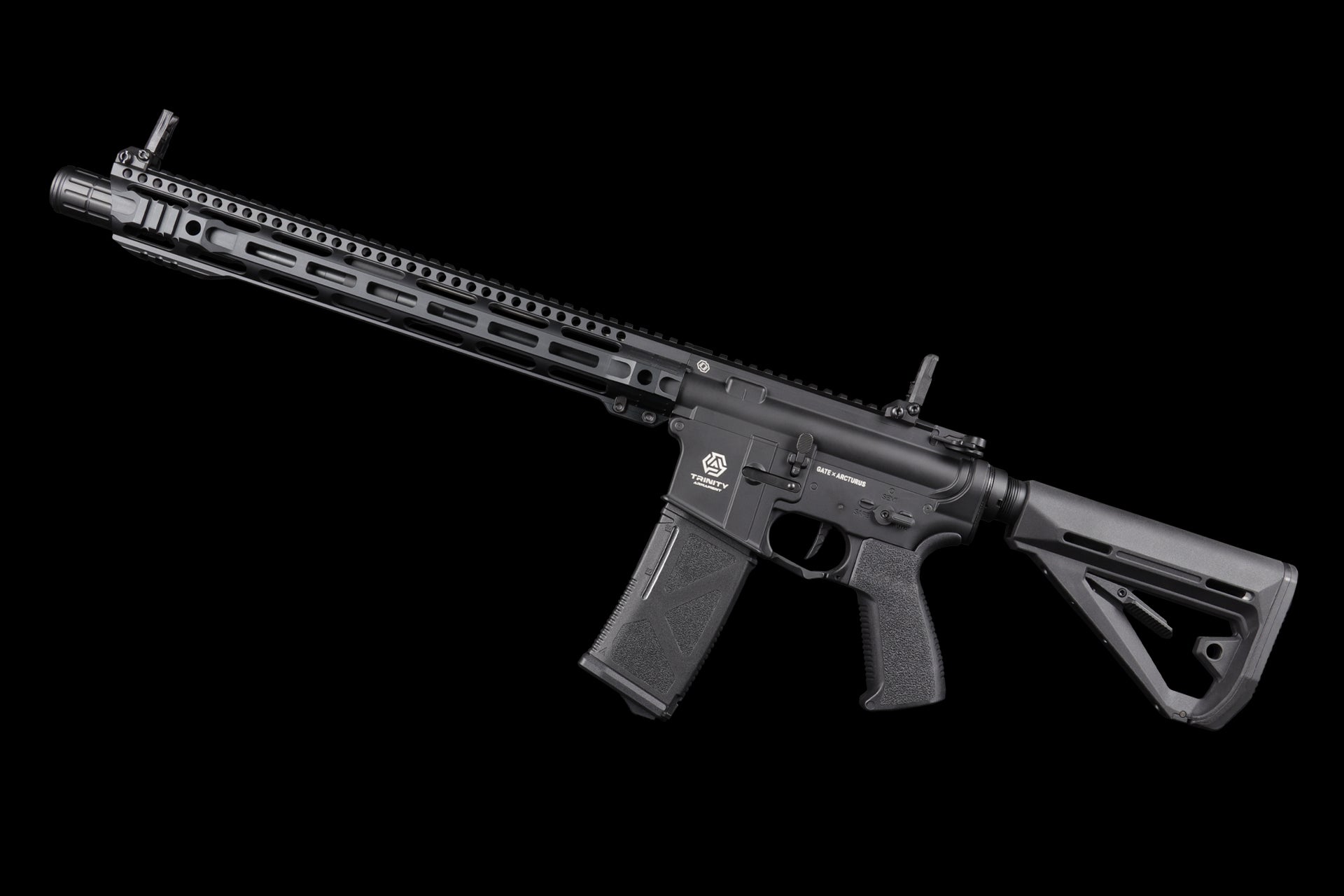

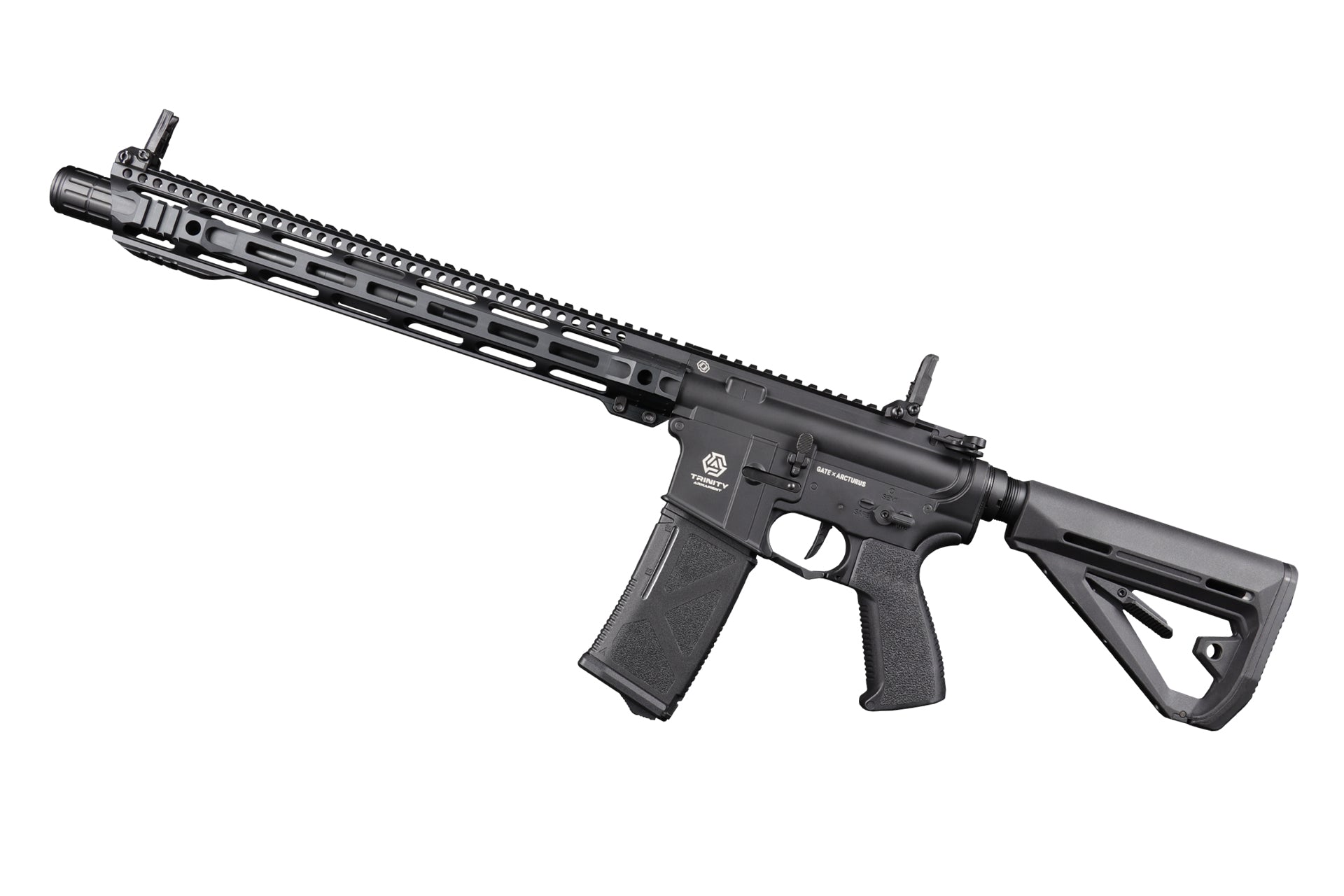

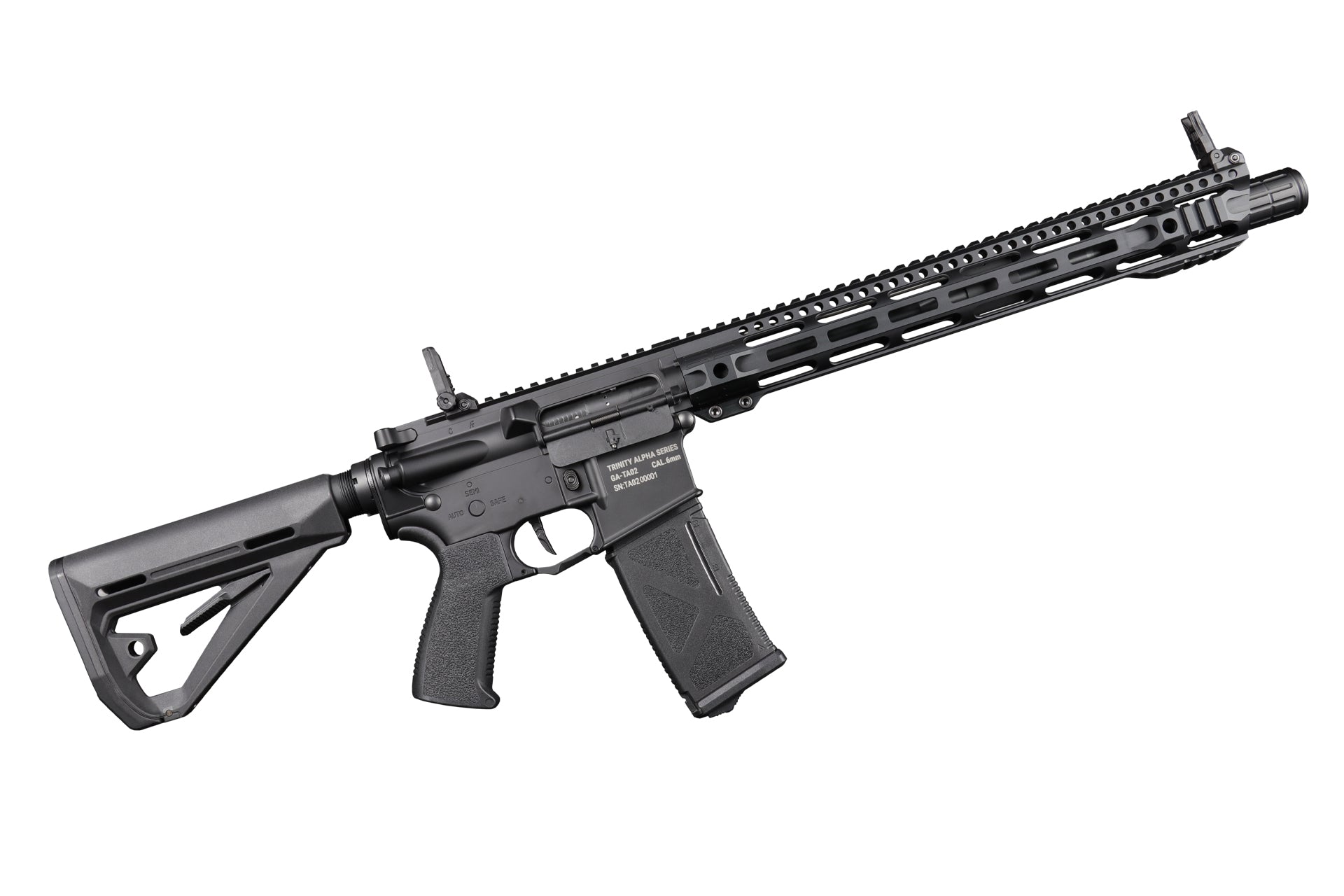

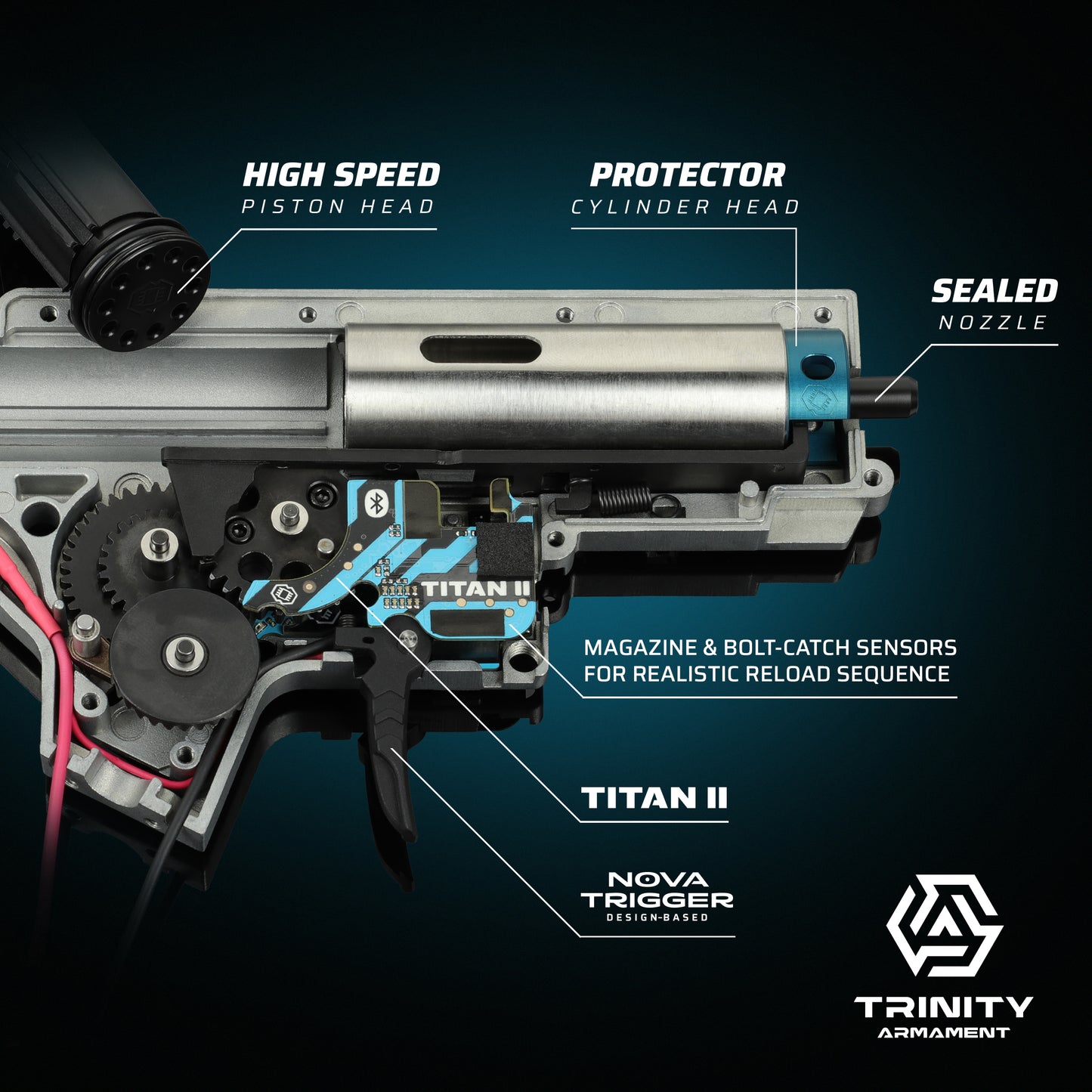

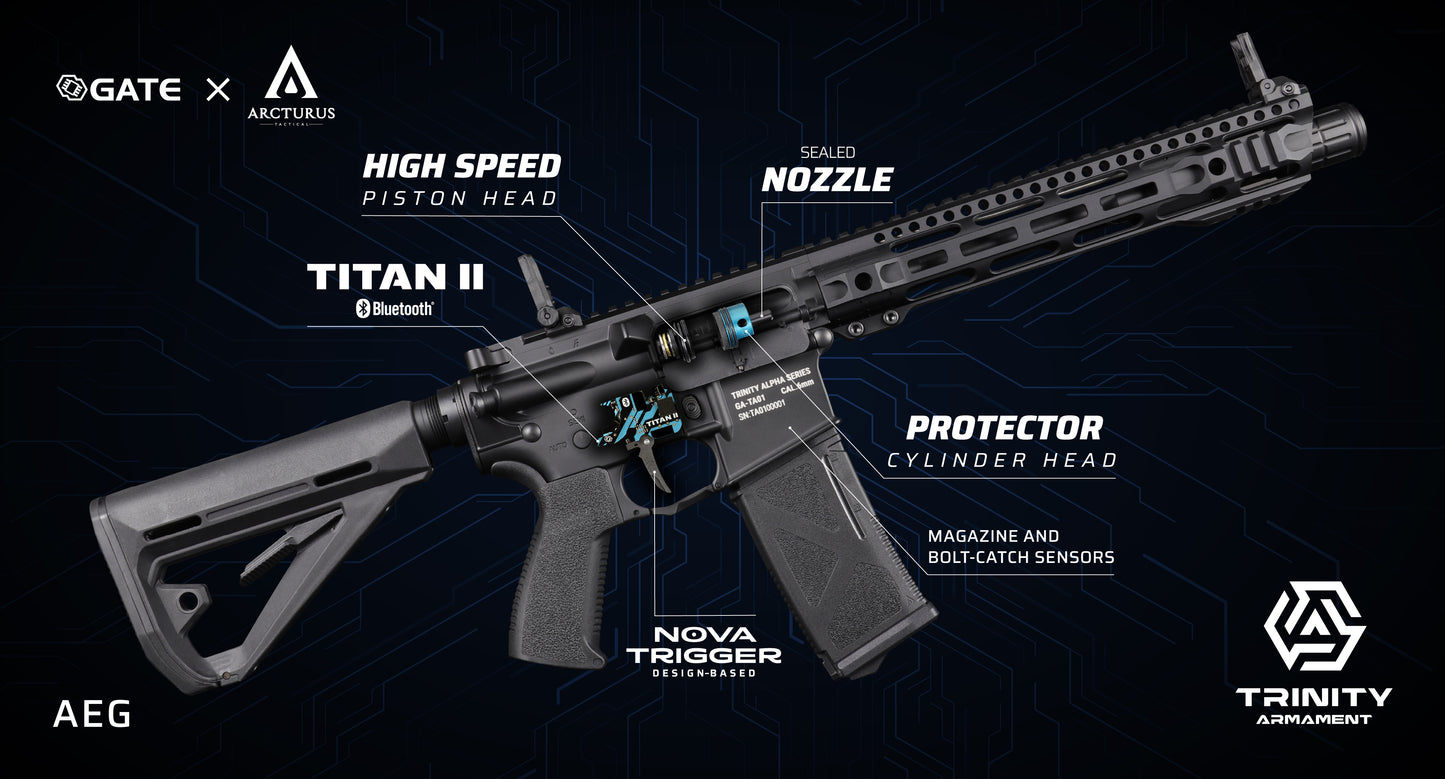

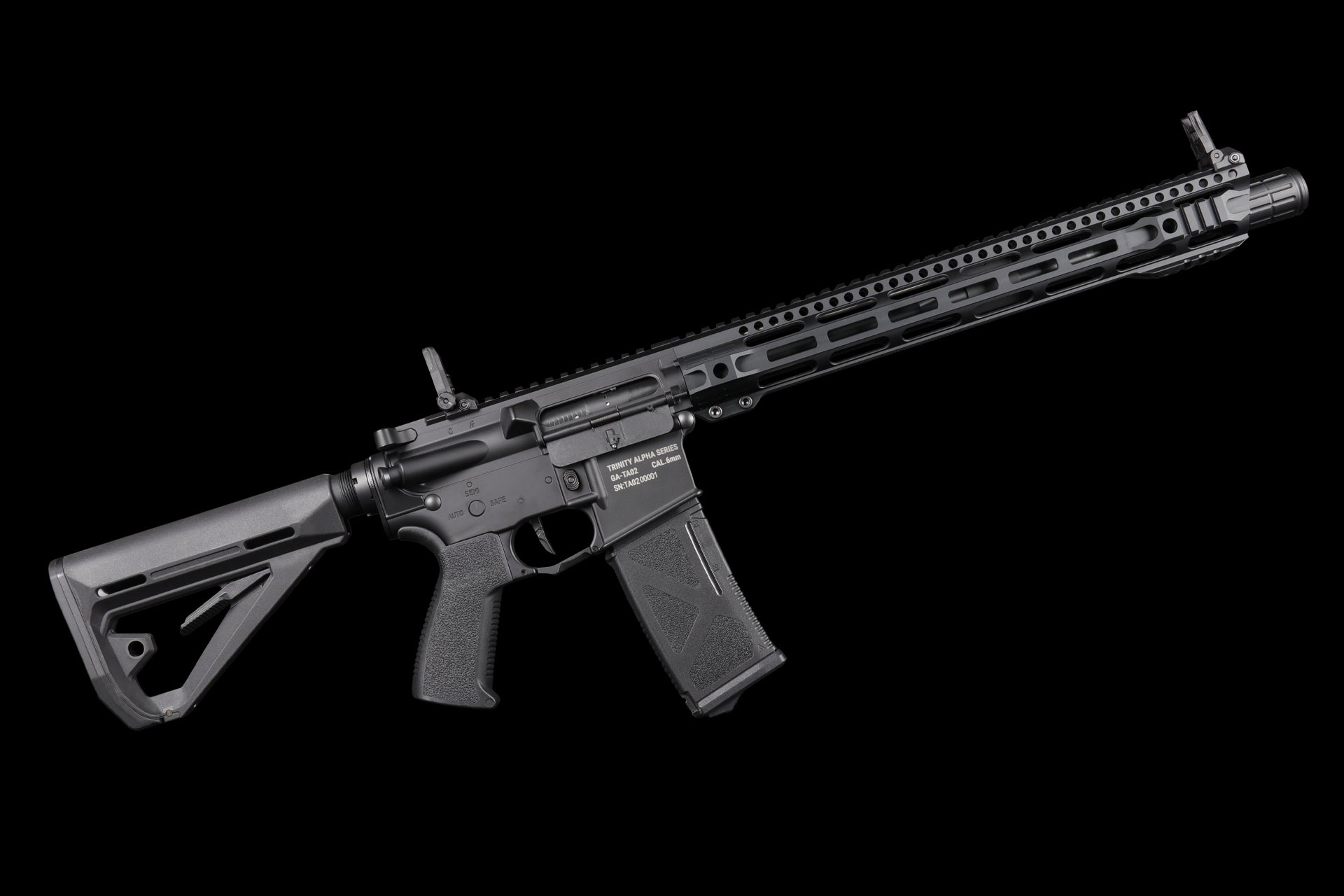

This is the world’s first AEG training replica series straight from the factory with a pre-installed TITAN II Bluetooth® and magazine & bolt-catch sensors. TRINITY AEG training replicas are aimed at anyone with their primary focus on response time and cycle speed. Elevate your airsoft experience to new heights with our cutting-edge technology. Experience true realism with the bolt-catch feature, mirroring real life action as it detects your press of the bolt-catch button. Customize your gameplay further with adjustable magazine capacity limits, while our realistic magazine function ensures authenticity by blocking shooting when the magazine is removed. The reinforced gearbox includes the brand new GATE TITAN II Bluetooth®, GATE CNC made parts such as the adjustable Nova Trigger design-based trigger, Protector Cylinder Head, High Speed Piston Head, Bolt-Catch and Magazine sensors. The most advanced and user-friendly GCS app lets you access a multitude of settings and configurations like binary trigger, trigger sensitivity, ROF – live via Bluetooth®. You can even use a remote trigger on your smartwatch. When you purchase the TRINITY training replica, you receive a calibrated and tested system. Step into the future with the most advanced technologies available!
-
-
GATE ENTERPRISE and ARCTURUS TACTICAL are both community driven and dedicated to innovative product development. Under the same vision, we have teamed up to create a product that enhances the airsoft experience integrating unparalleled cutting-edge technology from GATE ENTERPRISE and reliable quality & durability from ARCTURUS. Our partnership aims to push the benchmark of AEG performance and customizability. Especially for TRINITY ARMAMENT, we have developed a new reinforced gearbox, fully compatible with the GATE ecosystem, and perfected the replica body manufacturing technology to ensure the highest quality. Henceforth, the monumental creation of TRINITY ARMAMENT.
TITAN II Bluetooth® onboard
-
-
The brand new TITAN II Bluetooth® for V2 GB is the GATE flagship Electronic Trigger Unit (ETU) with built-in Bluetooth 5.2 technology gives you direct access to TITAN II Bluetooth® settings, AEG telemetry, and the ability to use your smartwatch, STATUS, and other future devices of the GATE Ecosystem. The innovative gear sensor not only counts gears, but also, as the first one in the world, determines the direction of gear rotation, offering you the most precise cycle control in AEGs. The mind-blowing optical trigger sensor allows you to set the hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement, keeping TITAN V2 sensor advantages. TITAN II Bluetooth® is equipped with a multifunctional port ready for connecting additional accessories such as the bolt-catch and magazine sensors, tracer in the hop-up chamber, and more.
-
Why TRINITY ARMAMENT replicas stand out:

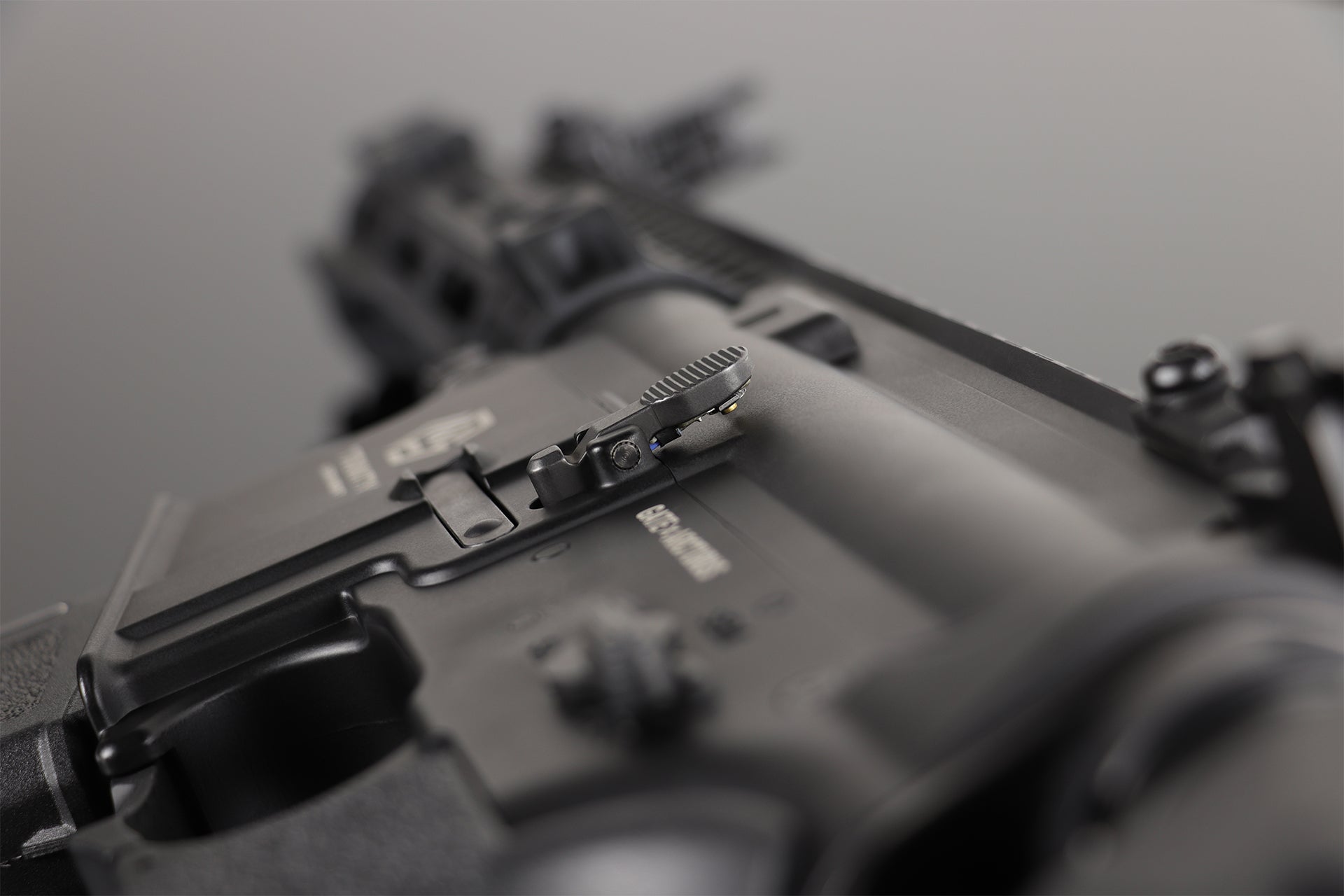

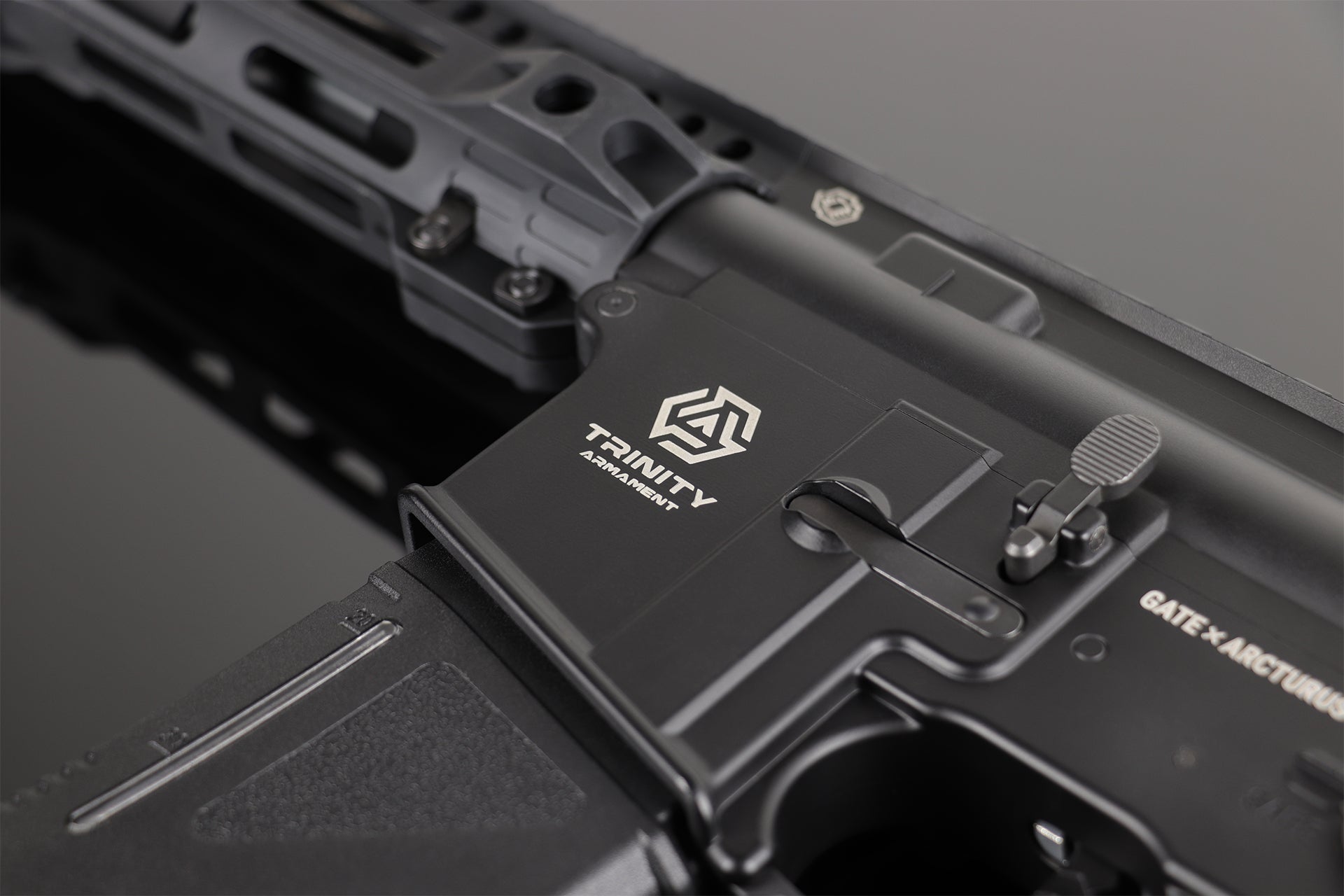

- Realistic training platform – Electronic bolt catch release working in conjunction with a magazine sensor. This allows real capacity magazine drills for shot count simulation and training events.
- High performance replica using components researched and designed in-house.
- CNC manufacturing for unparoled performance and durability.
- Titan II Bluetooth® inside with full compatibility with the GATE Ecosystem, such as STATUS or a smart watch.
- Simple management of the replica’s settings via smartphone and the GCS App via Bluetooth connectivity.
- TRINITY ARMAMENT offering an advanced AEG that is versatile for use as a training tool or giving the player an edge in day-to-day play.
…and many more
-
ARCTURUS Feature Highlights
- ARCTURUS RS™ 23TPA High Torque Neodymium Motor
- ARCTURUS RS™ 13:1 Steel CNC Wide Use Gear Set
- ARCTURUS RS™ Nylon Fiber Reinforced Polymer Piston with 14 MIM Steel Teeth
- ARCTURUS RS™ HCL Spring
- ARCTURUS RS™ CNC Steel Ball Bearing Spring Guide
- ARCTURUS RS™ Steel QPQ Precision 6.02 AEG Tightbore Inner Barrel

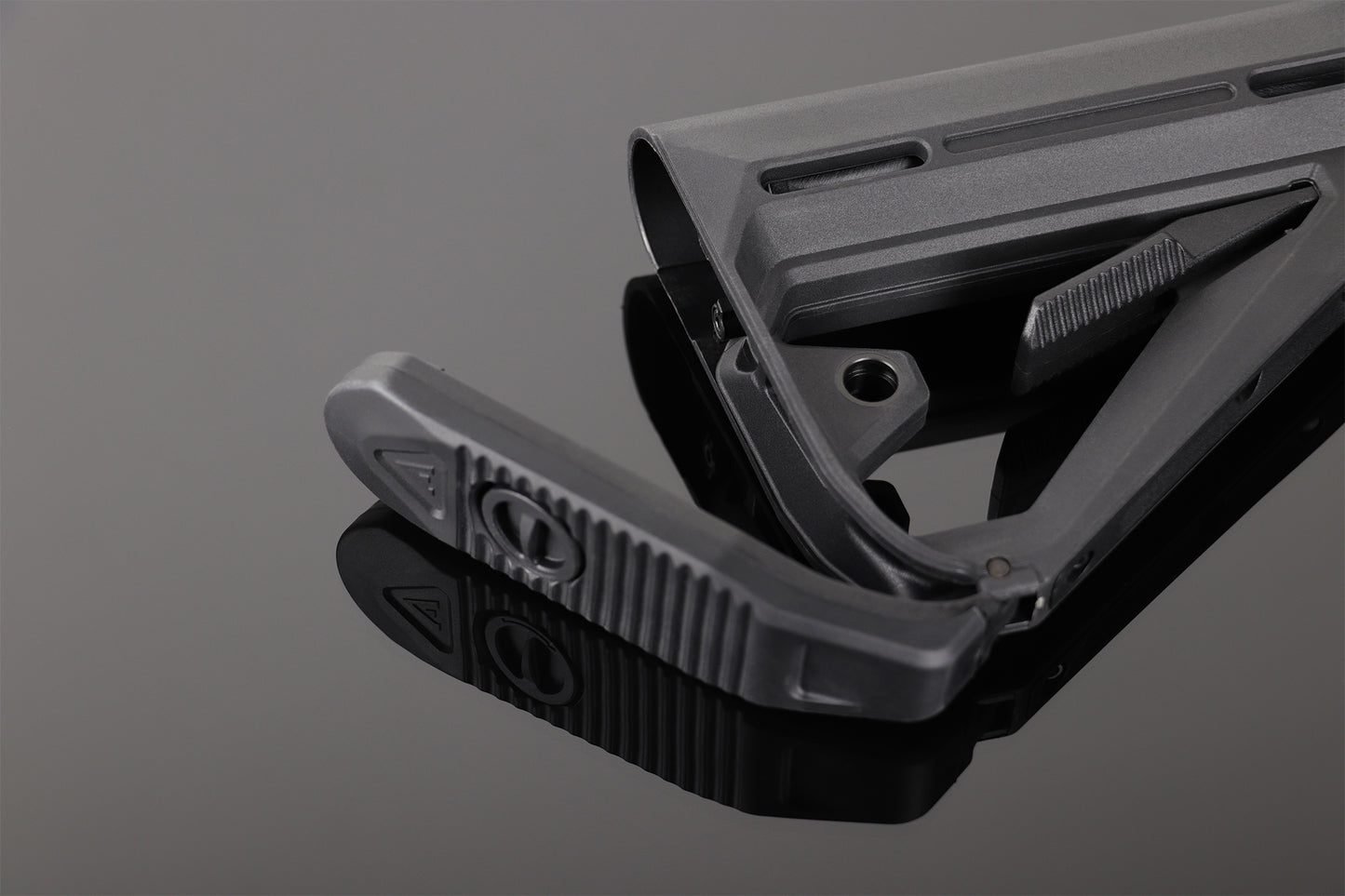

- ARCTURUS AR MOD1 WKS LBC Stock / Slim Stock
- ARCTURUS AR MOD2 WKS Hand Stippled Style Pistol Grip
- ARCTURUS AR MOD1 WKS M4/M16 30/130Rds Variable-Cap Windowed EMM Magazine BLK
TITAN II SPECIFICATIONS
-
Download GCS App
GCS APP
TITAN and GCS App give you total control of your AEG. ㅤ
ㅤ
The GCS offers you the option to:
• Control your airsoft gun from a smartphone with Android, iOS and PC with Windows or macOS
• Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win
• No more surprises with an empty magazine or a discharged battery
• Easily adjust the TITAN settings during the game
• Update and upgrade firmware
• View the BB counters, electrical measurements, and statistics
• Perform diagnostics and send reports
• Set trigger sensitivity exactly as you like and adjust other TITAN settings in a simple way• Try out ROF control, magazine simulation, and other functions
-
TITAN II FEATURES

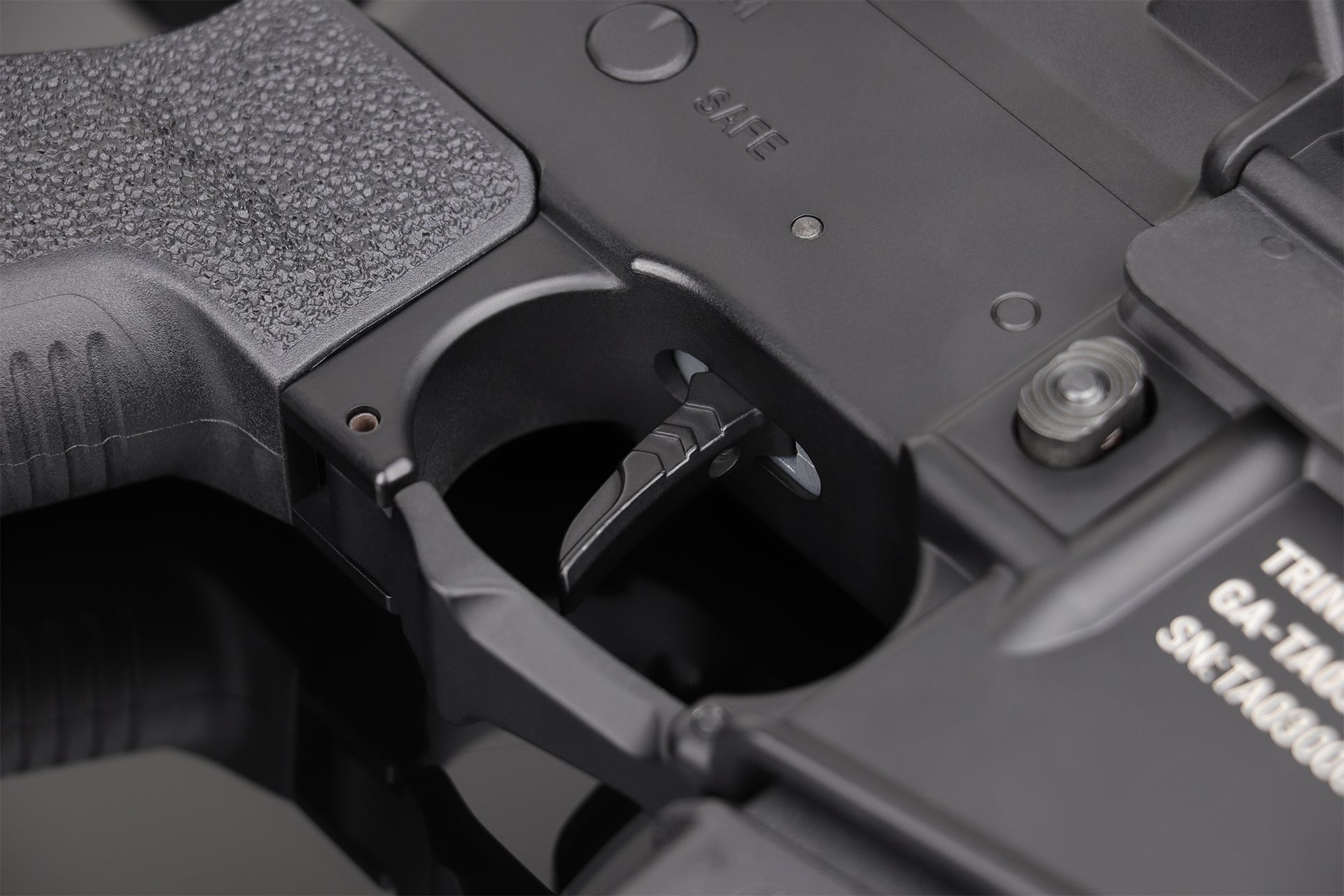

TRIGGER SENSITIVITY ADJUSTMENT
Five optical trigger sensors allow you to control trigger sensitivity. You don't have to disassemble your AEG. Just connect to the GATE Control Station App to adjust the trigger to your preferences and skill level.
SELECTOR MODES
Two selector sensors allow you to take advantage of hundreds of selector mode variations, depending on firmware edition. The following modes are available for selection*:
SAFE – prevents your gun from firing, even if the safety lever is removed
SEMI – allows you to fire one shot per one trigger pull
BINARY – allows for firing one shot on the trigger pull and another shot upon release
BURST – enables you to shoot a predetermined number of BBs, which is very useful in MilSims and when using low-caps; there are 2 BURST Modes available:
- Full – a burst is shot in full, even if the trigger is released early
- Interruptible – the burst can be interrupted by releasing the trigger early
BURST/AUTO – available in Full BURST Mode only; allows for extending a burst by any number of shots – if you hold the trigger after the burst is shot, it switches to AUTO Mode
AUTO – shots are fired as long as the trigger is pulled
SEMI RAMPING – if you pull the trigger very fast, it switches to AUTO Mode
*You can check selector configuration possibilities provided by particular Firmware Editions here.
Please note: In the case of Regional Lock, only SEMI Mode is available. Check law restrictions in your country.
PRE-COCKING
Victory in the game is often a matter of fractions of seconds. The new advanced cycle detection algorithm, thanks to a dual gear sensor, allows for smooth and precise pre-cocking adjustments in even the most exigent configurations increasing trigger response. Thanks to pre-cocking, you gain a trigger reaction similar to a real replica. This allows for initial spring compression, which speeds up trigger response significantly.
There are two Pre-Cocking Modes:
- AUTO Mode – the spring is automatically compressed after each shot—you choose the level of pre-cocking from the list (percentages or levels)
- MANUAL Mode – set the pre-cocking values yourself—instead of percentages there are time settings, you have to choose the time for yourself by trial and error
*Now Pre-Cocking is fully operational in SEMI, BURST, and AUTO Modes
Please note: using Pre-Cocking increases wear and tear on the gearbox.
AUTOMATIC PRE-COCKING
Pre-Cocking is fully operational in SEMI, BURST, and AUTO modes and there's no need to set the Pre-Cocking boost manually; you can simply set Pre-Cocking as high, mid or low
Full Cycle—when Pre-Cocking is off, TITAN II Bluetooth® ensures that the gearbox completes a full cycle and you gain more reliability
MAGAZINE
This feature allows for simulating magazines of lower capacity than actually used. Depending on Firmware Edition, allows you to set a simulation of magazine capacity from 1 BB up to 250 BBs. Even if you have a high-capacity magazine, this function lets you truly increase the realism of your game by imitating that your magazine is real-cap. Then, after apredetermined number of BBs is shot, you will have to wait for a previously defined amount of time before the next shot can be fired as if you were really replacing an empty magazine with a full one. In the case of ADVANCED and EXPERT Firmware, you can also set Low Ammo Warning.
ROF CONTROL
Enables the reduction of a gun's rate of fire. You can use stronger batteries and still have a ROF exactly as you like. Depending on firmware edition, you can choose between Adaptive, Manual PWM, Manual Delay, and Manual Delay + PWM
Adaptive – set your desired rate of fire; the brake and delay will be automatically adjusted to achieve this value.
Manual PWM – set braking power in percentages between shots
Manual Delay – set exact delay between shots in milliseconds
Manual Delay + PWM – set braking power and delay manually
SMART TRIGGER
SMART TRIGGER
We know how vital fast trigger response during combat is. That's why we've developed the Smart Trigger function, which enables you to achieve faster trigger response. It works with the ROF Control System. During the first shot, the microprocessor sets the ROF control to 100%. After the first shot, it switches to a previously programmed value (e.g. 50%). As a consequence, the first shot is fired at a full ROF and subsequent shots at a reduced ROF. The best results can be achieved when using a battery with above standard voltage. For example, if you’re using a 7.4 V battery, you can replace it with a 11.1 V one. This way, you will achieve faster trigger response with the same rate of fire than with a standard battery.
*Works only if ROF is decreased using the power settings of ROF control.
BATTERY PROTECTION & WARNINGS
Protection against battery over-discharge. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor is constantly monitoring battery voltage. When voltage drops to a critical level, it will not allow firing. The number of battery cells can be detected automatically.
LOW BATTERY WARNING
When battery voltage drops to a predefined level, the motor will vibrate at regular intervals. The user is warned 5 times before the battery is discharged. Each warning is communicated by 3 vibrations: HIGH → MID → HIGH.
ACTIVE BRAKE
Adjust the motor’s braking power according to your needs. Choose breaking value manually or set the Adaptive Active Brake. It will stop the piston in the front position, which eliminates unnecessary stresses, increasing the service life of the gearbox and its parts.
Adaptive Active Brake – Automatically adjusts the motor’s braking power according to the setup of your replica. Prolongs the lifespan of the motor and reduces the heat by adjusting the motor’s braking power.
Manual Active Brake – Choose your own value of active brake depending on your needs.
CYCLE DETECTION
Thanks to the gear sensor, TITAN precisely detects where the cycle should finish. Therefore, even the shortest trigger action produces at least one full cycle. The optical sector gear sensor counts each tooth of the gear, so it's possible to use all types of gears: Infinite Torque-up, DSG, SSG, 19-tooth, and standard ones. In EXPERT Firmware, you can select the cycle manually.
Thanks to the cycle detection function you get:
- Automatic BURST– there's no need to set the burst time. You can set the burst between 2 and 10 shots
- Automatic Pre-Cocking– Pre-Cocking is fully operational in SEMI, BURST, and AUTO Modes and there's no need to set the Pre-Cocking boost manually; you can simply set Pre-Cocking as high, mid or low
- Full Cycle– when Pre-Cocking is off, TITAN ensures that the gearbox completes a full cycle and you gain more reliability
DIAGNOSTICS & UPDATES
This feature allows you to troubleshoot your AEG in case of any issue. Errors are communicated once they occur, and their description can be found in the GCS App.
GCS allows for making firmware updates via the internet, which enables you to quickly apply changes, improvements, and bugfixes.
SMART FUSE
The Smart Fuse protects your AEG’s battery, motor, and controller, even in case of reverse battery connection. A combination of current, voltage, and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading, and short-circuiting. If your airsoft gun gets jammed, this function protects the motor and battery against damage.
What makes TITAN II so special?
Discover Our Ecosystem
