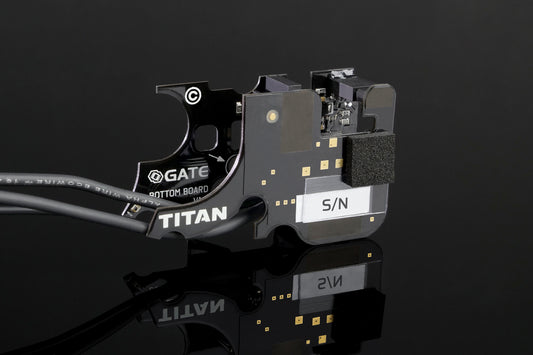

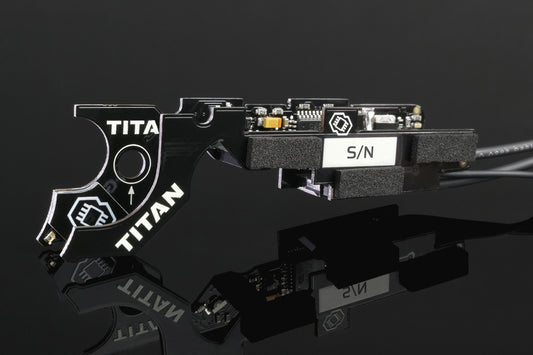

TITAN™ (drop-in mosfet) will transform your AEG into an advanced training weapon system. Gain a tactical advantage thanks to the extremely fast trigger response, with an option of adjusting the AEG for each mission with 20 functions. Give your AEG a new lease of life!

TITAN

Unit type: Drop-in MOSFET, Gearbox type: V2

TITAN gives you the option to adjust:

  • Trigger sensitivity
  • Pre-cocking boost
  • Fire selector mode
  • Burst mode
  • Rate of fire
  • Low battery warning
  • Battery protection
  • Sniper delay
newsletter
Sign up for the latest on TITAN drop-in:

captcharefresh

Powered by ChronoForms - ChronoEngine.com

TITAN

Unit type: Drop-in MOSFET, Gearbox type: V2

TITAN gives you the option to adjust:

  • Trigger sensitivity
  • Pre-cocking boost
  • Fire selector mode
  • Burst mode
  • Rate of fire
  • Low battery warning
  • Battery protection


Sign up for the latest on TITAN drop-in:

captcharefresh

Powered by ChronoForms - ChronoEngine.com

What is a drop-in mosfet? It is an electronic unit, which replaces the trigger contacts and the cut-off lever, which takes control of your AEG.



TITAN

Tactical Programming Card

Configure your TITAN in the field using the outstanding Tactical Programming Card which provides you with very easy access to the Drop-in Module functions.



TITAN

GATE Control Station™

Simply update the firmware and/or adjust the settings at home, using the USB-Link and the GATE Control Station™ computer App.

GATE Control Station download page.



TITAN

USB-Link

The USB-Link works in tandem with the GATE Control Station™ App, giving you full access to TITAN's functions and allows you to update the firmware of the drop-in module and the Tactical Programming Card.




Get ready for the amazing functions such as:

TRIGGER SENSITIVITY ADJUSTMENT

Five trigger sensors allow you to control trigger sensitivity. You do not have to disassemble your AEG. Just use the Tactical Programming Card or the GATE Control Station™ App to adjust the trigger to your preferences and level of skills.



CONFIGURABLE FIRE SELECTOR (gen.2)

Two selector sensors allow you to use up to six fire selector modes, including innovative SEMI-BURST-AUTO mode:

  • SAFE-SEMI-AUTO
  • SAFE-SEMI-SEMI
  • SAFE-SEMI-BURST
  • SAFE-BURST-AUTO
  • SAFE-SEMI-BURST/AUTO (short press - BURST, long press - AUTO)
  • SEMI-BURST-AUTO (SAFE mode via the fast switch SAFE-SEMI-SAFE)


CYCLE DETECTION

Thanks to the gear sensor, TITAN precisely detects in which position the cycle should finish. Therefore, even the shortest trigger action produces at least one full cycle.

Thanks to the cycle detection function you get:

  • Automatic BURST – there is no need to set the burst time. You can set the burst between two and 10 shots;
  • Automatic PRE-COCKING – Pre-cocking is fully operational in SEMI, BURST and AUTO modes and there is no need to set the pre-cocking boost manually. You can simply set the pre-cocking as high, mid or low;
  • FULL CYCLE - when the pre-cocking is off, TITAN ensures that the gearbox completes a full cycle. You gain a higher reliability.


PRE-COCKING (gen.2*)

Victory in the game is often a matter of fractions of seconds. Thanks to PRE-COCKING, you gain a trigger reaction similar to a real gun. It allows for initial spring compression, which speeds up the trigger response significantly.

  1. AUTO MODE – the spring is automatically compressed after each shot,
  2. SMART MODE – slow trigger action compresses the spring, and fast trigger action fires the shot.

And three PRE-COCKING BOOST options: HIGH / MID / LOW


*Now the pre-cocking is fully operational in SEMI, BURST and AUTO modes and there is no need to set the pre-cocking boost manually

Please note: using PRE-COCKING increases wear and tear on the gearbox.



BURST (gen.2*)

The burst enables you to shoot a pre-determined number of BBs, which is very useful in MILSLIM and when using low-caps.


* There is no need to set burst time. You can easily set burst between two and 10 shots.



ROF CONTROL

This enables a reduction in a gun's rate of fire. You use stronger LiPo batteries, and still have a ROF just like in a real gun.



ROF STAB

It allows you to change the way the ROF Control works:
ON - ROF Control uses PWM to decrease ROF. Thanks to this gearbox works smoothly what decreases wear and tear of AEG internal parts.
OFF - ROF Control adds breaks between shots to decrease ROF. It gives you more realistic experience.



SNIPER DELAY

It lets you to set delay between each SEMI shots to simulate the delay from reload or recoil. You can set 0.5s, 1s, 2s or 3s delay.



SMART TRIGGER

We know how vital the fast trigger response is during combat. This is why we have developed the Smart Trigger function. It enables you to achieve a faster trigger response. It works with the ROF Control System. During the first shot, the microprocessor sets the ROF Control to 100%. After the first shot, it switches to a previously programmed value (e.g. 50%). As a consequence, the first shot is fired at a full ROF, and subsequent shots at a reduced ROF. The best results can be achieved by using a battery with a higher than standard voltage. For example, if you use a 7.4V battery, you can replace it with 11.1V. In this way, you will achieve a faster trigger response with the same rate of fire as with a standard battery.

*Works only when ROF STAB is ON.



AUG MODE

Enjoy two stage trigger. Activate AUG Mode and set two different trigger sensitivities. Pulling the trigger slightly produces SEMI or BURST fire and pulling the trigger further produces BURST or AUTO fire (depending on the fire selector mode).



BATTERY PROTECTION (gen.2*)

Protection against Over-Discharge of the Battery. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor monitors the battery voltage constantly. When the voltage drops down to a critical level, it will not allow firing.


*TITAN detects the number of cells automatically. There is no need to reprogram TITAN every time you replace the battery.



LOW BATTERY WARNING

When the battery voltage drops to a predefined level, the motor will vibrate at regular intervals.



SMART FUSE

We have developed an electronic fuse with an accurate current sensor. A combination of current, voltage and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading and short-circuiting. If your airsoft gun becomes jammed, the function protects the motor and battery against damage.



ADAPTIVE ACTIVE BRAKE

It automatically adjusts the motor's braking power according to your needs. This prolongs the lifespan of the motor.



MOSFET

Do you want to achieve a higher ROF and faster trigger response? Are you planning a power upgrade of your gun? In that case, you need a MOSFET.

It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts. As a result, you gain a higher ROF of the gun and a faster trigger response.



BUILT-IN SELF-TEST

This allows you to quickly check whether the drop-in module is working properly. It helps to locate where the problem lies when anything goes wrong.



COATING

Thanks to its special conformal coating, our product is resistant to atmospheric conditions (Military Specification MIL-V-173C).



DEANS-T READY

The product has factory-fitted low-resistance deans-t connectors.



MINI-TAMIYA ADAPTER

Thanks to the Mini Tamiya Adapters included in the kit, you can smoothly connect the drop-in module to your original (stock) installation.



14.8V LI-PO READY

The drop-in module can be used with batteries up to and including 14.8V LI-PO. The minimum operating voltage is 3V and maximum is 17V.



PRINTED QUICKSTART

Make your adventure start more easily with a new product. The quickstart contains basic information and hints.



TITAN

TITAN has no less than eight sensors!

  • 1 gear sensor
  • 2 selector sensors
  • 5 trigger sensors



Thanks to the optical sensors we have eliminated the problem of faulty switches that can occur in competitors' drop-in mosfets. The trigger has no mechanical connections with the PCB. This eliminates mechanical stresses and provides for high reliability.

GATE CTO, April 2016

  • Automatic BURST – there is no need to set burst time. You can set burst between two and 10 shots;
  • Automatic PRE-COCKING – Pre-cocking is fully operational in SEMI, BURST and AUTO mode and there is no need to set pre-cocking boost manually. You can easily set the pre-cocking as high, mid or low;
  • FULL CYCLE - when the precocking is off, TITAN ensures that the gearbox always makes full cycles.

You can trust TITAN because:

  • Every time you pull the trigger gearbox completes the correct cycle. The gears stop exactly where they should. The gearbox works efficiently.
  • It is protected against short-circuits, overheating and overloading
  • It protects the battery against over-discharge
  • It significantly improves battery life, rate of fire, spring life and gearbox reliability (when pre-cocking is off)
  • It is compatible with the strongest AEG replicas and batteries (ready to use with LiPo 14.8V, 5000 mAh, 60C)

Why TITAN is so special?

  • It has a user-friendly configuration via the Tactical Programming Card and/or GATE Control Station
  • It has option to make firmware updates via the internet
  • It has innovative optical sensors instead of mechanical switches that can be prone to faults
  • It replicates a trigger response like in a real gun
  • It replaces the cut-off lever
  • It is compatible with DSG and SSG gears
  • It is compatible with most v2 gearboxes (including cnc) on the market without any modification

TITAN is a modular system which includes:

    1. TITAN Drop-in Module (rear or front wired)
    2. TITAN Tactical Programming Card
    3. USB-Link for GATE Control Station™ App

What is the difference between using Tactical Programming Card or USB-Link?

The main difference is that the Tactical Programming Card is small, lightweight and portable. Using USB-Link with GATE Control Station™ gives more functions, including firmware update and requires connection to PC.

  Tactical Programming Card USB-Link with GATE-CS
Settings adjustment + +
Firmware update - +
Portable + -
Sensors check + +
Diagnostic Trouble Codes + +
Statistics - +
Additional settings - +
  Tactical Programming Card USB-Link with GATE-CS
Settings adjustment + +
Firmware update - +
Portable + -
Sensors check + +
Diagnostic Trouble Codes + +
Statistics - +
Additional functions’ settings - +

TITAN

FIRMWARE EDITIONS

The TITAN is currently available in two firmware editions: BASIC and ADVANCED. In the future, the EXPERT edition will be also available. The table on the left shows differences between the BASIC and ADVANCED firmware editions.

  • BASIC: The best for those who prefer simplicity but require highest quality. Economic version with limited number of functions. If you will decide to have more functions, there is always option to upgrade firmware from BASIC to ADVANCED.
  • ADVANCED: The best for those who like complex solutions. Advanced version with wide variety of functions. It enables access to the Statistics and TITAN World Rankings.

In order to upgrade your TITAN firmware from BASIC to ADVANCED, you need to purchase the upgrade:

TITAN Advanced Firmware Edition Upgrade

TITAN

FIRMWARE EDITIONS

The TITAN is currently available in two firmware editions: BASIC and ADVANCED. In the future, the EXPERT edition will be also available. The table above shows differences between the BASIC and ADVANCED firmware editions.

  • BASIC: The best for those who prefer simplicity but require highest quality. Economic version with limited number of functions. If you will decide to have more functions, there is always option to upgrade firmware from BASIC to ADVANCED.
  • ADVANCED: The best for those who like complex solutions. Advanced version with wide variety of functions. It enables access to the Statistics and TITAN World Rankings.

In order to upgrade your TITAN firmware from BASIC to ADVANCED, you need to purchase the upgrade:

TITAN Advanced Firmware Edition Upgrade


TITAN V2 is available in three sets:

  Sets comparison: Complete Set Advanced Set Basic Module
TITAN with ADVANCED firmware edition + + -
TITAN with BASIC firmware edition - - +
USB-Link + + -
USB-A Cable for USB-Link + + -
USB-C Cable for USB-Link - + -
Micro-USB Cable for USB-Link - + -
Tactical Programming Card + - -
  Sets comparison: Complete Set Advanced Set Basic Module
TITAN with ADVANCED firmware edition + + -
TITAN with BASIC firmware edition - - +
USB-Link + + -
USB-A Cable for USB-Link + + -
USB-C Cable for USB-Link - + -
Micro-USB Cable for USB-Link - + -
Tactical Programming Card + - -

SETS COMPARISON


How to choose TITAN box version?

How to choose TITAN box version

Case 1:

  1. Do you have USB-Link? NO.
  2. Would you like to have advanced firmware or basic firmware edition? ADVANCED.
  3. You should buy TITAN Advanced Set. MSRP Price: 700 PLN or TITAN Complete Set. MSRP Price: 820 PLN

Case 2:

  1. Do you have USB-Link? YES.
  2. Would you like to have advanced firmware or basic firmware edition? ADVANCED.
  3. You should buy TITAN Basic Module and Advanced Firmware Upgrade. MSRP Price: 400 + 150 PLN = 550 PLN

Case 3:

  1. Do you have USB-Link? NO.
  2. Would you like to have advanced firmware or basic firmware edition? BASIC.
  3. You should buy TITAN Basic Module and USB-Link separately. MSRP Price: 400 + 150 PLN = 550 PLN

Case 4:

  1. Do you have USB-Link? YES.
  2. Would you like to have advanced firmware or basic firmware edition? BASIC.
  3. You should buy TITAN Basic Module. MSRP Price: 400 PLN

TITAN V2™ Complete Set

The complete set version: at once you purchase all you need to take total advantage from TITAN. Complete Set contains TITAN with ADVANCED firmware edition.

TITAN TITAN TITAN

      1. TITAN V2 Module with ADVANCED firmware (rear or front wired)
      2. TITAN Tactical Programming Card
      3. USB-Link for GATE Control Station™ App
      4. Installation Kit
      5. USB-A Cable for USB-Link [1.5m / 4ft 11in]
      6. Quickstart Guides



TITAN V2™ Advanced Set

At once you purchase TITAN with ADVANCED firmware edition, USB-Link and USB cables allowing to connect TITAN to PC as well as Android device.

The ADVANCED firmware edition offers wide variety of functions and is dedicated for those who like complex solutions. It enables access to the Statistics and TITAN World Rankings. To learn all the differences between firmware editions, please check the comparison table.

TITAN V2 TITAN V2
TITAN V2 TITAN V2
TITAN V2
TITAN V2
TITAN V2
TITAN V2

Kit contents:

  1. TITAN V2 with ADVANCED firmware edition (rear or front wired)
  2. USB-Link for GATE Control Station™ App
  3. USB Cables:
    a) USB-A to Micro-USB (1.5m / 4ft 11in)
    b) USB-C to Micro-USB (0.6m / 1ft 11in)
    c) Micro-USB to Micro-USB (0.6m / 1ft 11in)
  4. Installation Kit
  5. Quickstart Guides

TITAN V2™ Basic Module

The best if you long for having TITAN in two or more airsoft guns. Then you do not need the second USB-Link from the Advanced or Complete set. It includes TITAN with BASIC firmware edition.

The BASIC firmware edition is an economic version with limited number of functions, dedicated for those who prefer simplicity but require highest quality.  If you decide to have more functions, there is always option to upgrade firmware from BASIC to ADVANCED.

TITAN V2 TITAN V2
TITAN V2 TITAN V2
TITAN V2
TITAN V2
TITAN V2
TITAN V2

  1. TITAN V2 with BASIC firmware edition (rear or front wired)
  2. Installation Kit
  3. Quickstart Guide

Since 2018 Basic Module replaces Drop-in Module.

NOTICE! In order to configure TITAN, you need the USB-Link or Tactical Programming Card which is not included in this kit.

TITAN V2™ Drop-in Module - discontinued

The best if you have already bought the TITAN Complete Set but you long for having TITAN in two or more airsoft guns. Then you don’t need the second Tactical Programming Card and the second USB-Link from the complete set. This is also suitable for you if you decide to purchase the Programming Card or USB-Link separately.

TITAN TITAN TITAN

      1. TITAN Drop-in Module (rear or front wired)
      2. Installation Kit
      3. Quickstart Guide

Notice: To run and set up the Drop-in Module, it is necessary to have the TITAN Tactical Programming Card or USB-Link.

TITAN Tactical Programming Card

Provides you with very easy access to the Drop-in Module functions' settings anywhere you are.

TITAN TITAN

      1. TITAN Tactical Programming Card
      2. Quickstart Guide

Notice: TITAN is not compatible with WARFET Tactical Programming Card.

USB-Link for GATE Control Station™ App

Allows to connect TITAN to PC in order to use GATE Control Station App.

TITAN TITAN

      1. USB-Link for GATE Control Station App
      2. USB-A to Micro-USB (1.5m / 4ft 11in)
      3. Quickstart Guide

TITAN V2™ Installation Kit

V2 Installation Kit V2 Installation Kit
V2 Installation Kit V2 Installation Kit
V2 Installation Kit
V2 Installation Kit
V2 Installation Kit
V2 Installation Kit



Videos:



TITAN Unboxing

https://youtu.be/Gy4Md415wZ0


TITAN Installation

https://youtu.be/5O6IgzW-wEg


Trigger Sensitivity Adjustment

https://youtu.be/Tu5GXJ3w9N8


Configurable Fire Selector

https://youtu.be/eheE87gbavs


Hair Trigger

https://youtu.be/oFdexZfS-fE
