Unlock the accuracy potential of your GATE PTX with the GATE PTX Accuracy Upgrade Kit V31. A precision POM nozzle, dedicated nozzle spring and revised barrel stabilization work together to deliver tighter groups and more repeatable shot placement.

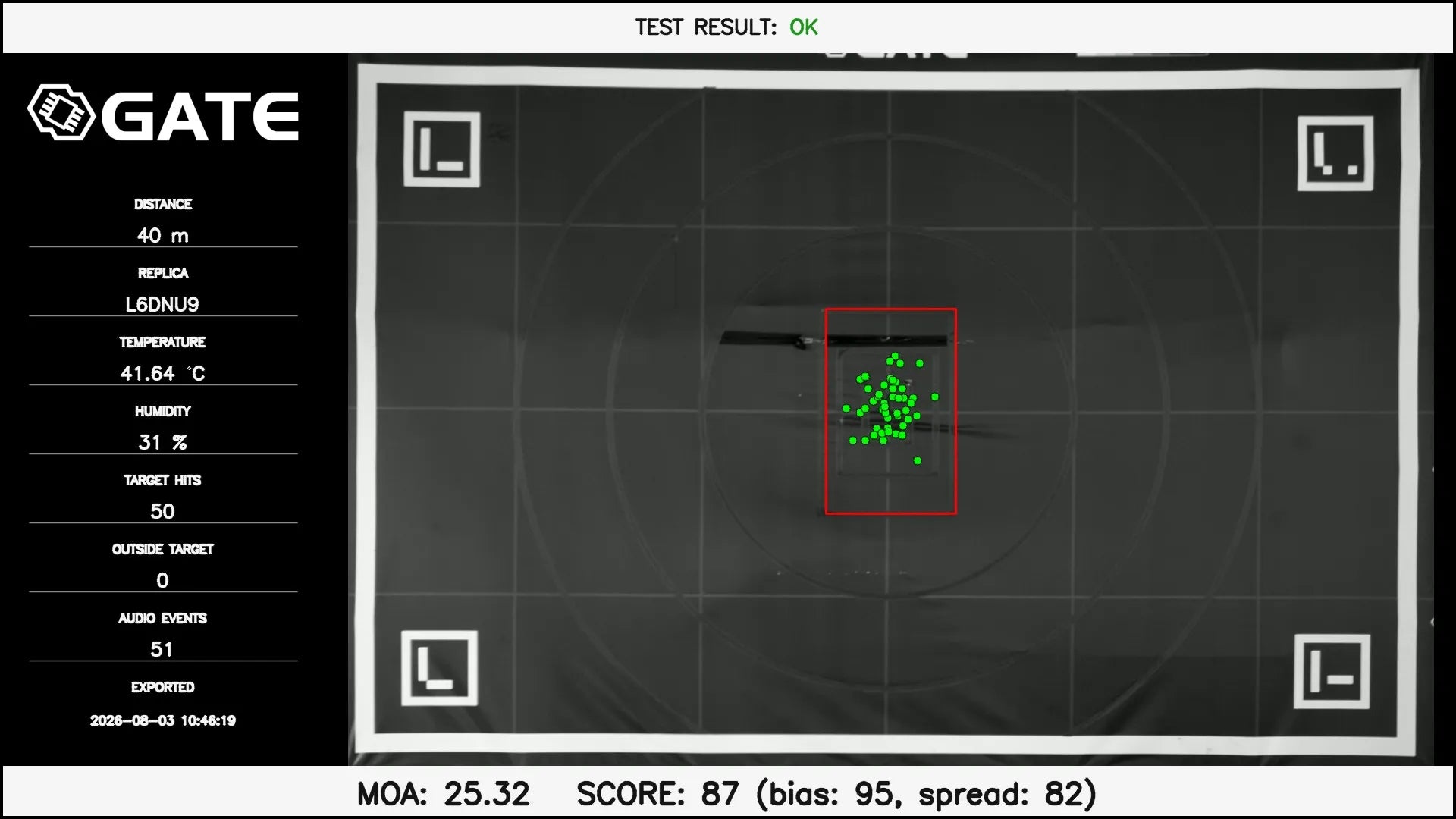

In GATE R&D testing at 40 metres, V31 achieved 53.9% tighter average MOA and an 112.7% higher average SCORE compared with V22. The best recorded individual 50-shot series reached MOA 25.32 and SCORE 87.

Keep your PTX and PULSAR S2 engine - upgrade the components that make the difference.

Results are averages and records from controlled GATE R&D testing. Actual performance depends on configuration, setup, lubrication and assembly quality.

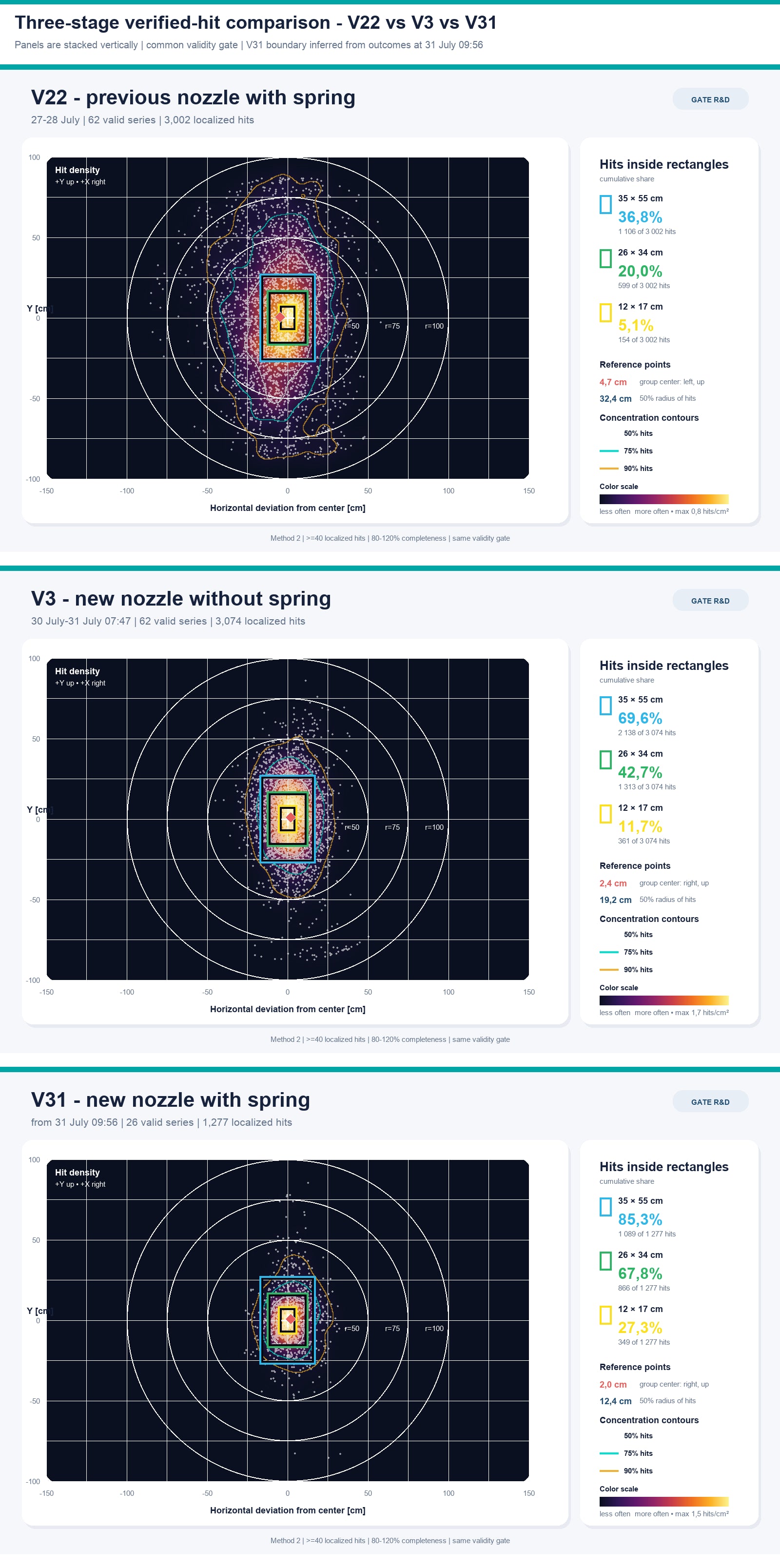

V31 improves more than a single headline number. The complete hit cloud becomes tighter, a much larger share of shots reaches the central target area and the centres of individual series become substantially more stable.

Designed for GATE PTX pistols equipped with the PULSAR S2 engine. Installation procedures are available for:

PTX Version 1.0

PTX V22

The installation method and the components reused from the original pistol differ between versions.

Installation requires access to the rear section of the PULSAR S2 engine and the hop-up and inner-barrel assembly. Correct lubrication, free nozzle movement and careful reassembly are essential for the final result.

After installation, check the hop-up adjustment and retune Dp for the individual setup. Use the lowest Dp that still provides reliable operation, as specified in the V31 installation instructions.

V31 is the PTX upgrade kit combining GATE’s precision POM nozzle with a dedicated nozzle spring and revised stabilization of the sealing, hop-up and inner-barrel system.

No. V31 uses a POM nozzle and a revised component configuration developed after the earlier V22 system.

No. V31 is a retrofit of the accuracy-critical nozzle and stabilization components in the existing PTX and PULSAR S2 system.

An experienced user or technician can install the kit by following the official instructions. The work requires engine and hop-up disassembly, correct lubrication and careful reassembly.

Final performance depends on the complete setup, including BBs, hop-up adjustment, pressure, valve timing, barrel condition, lubrication, assembly quality and environmental conditions. The published figures describe the tested cohorts and are not a guarantee for every individual pistol.

Which hop-up bucking do you recommend?

The best results are achieved with the Maple Leaf AUTOBOT 60° rubber hop-up bucking. This recommendation applies to the rubber version, not the silicone version.

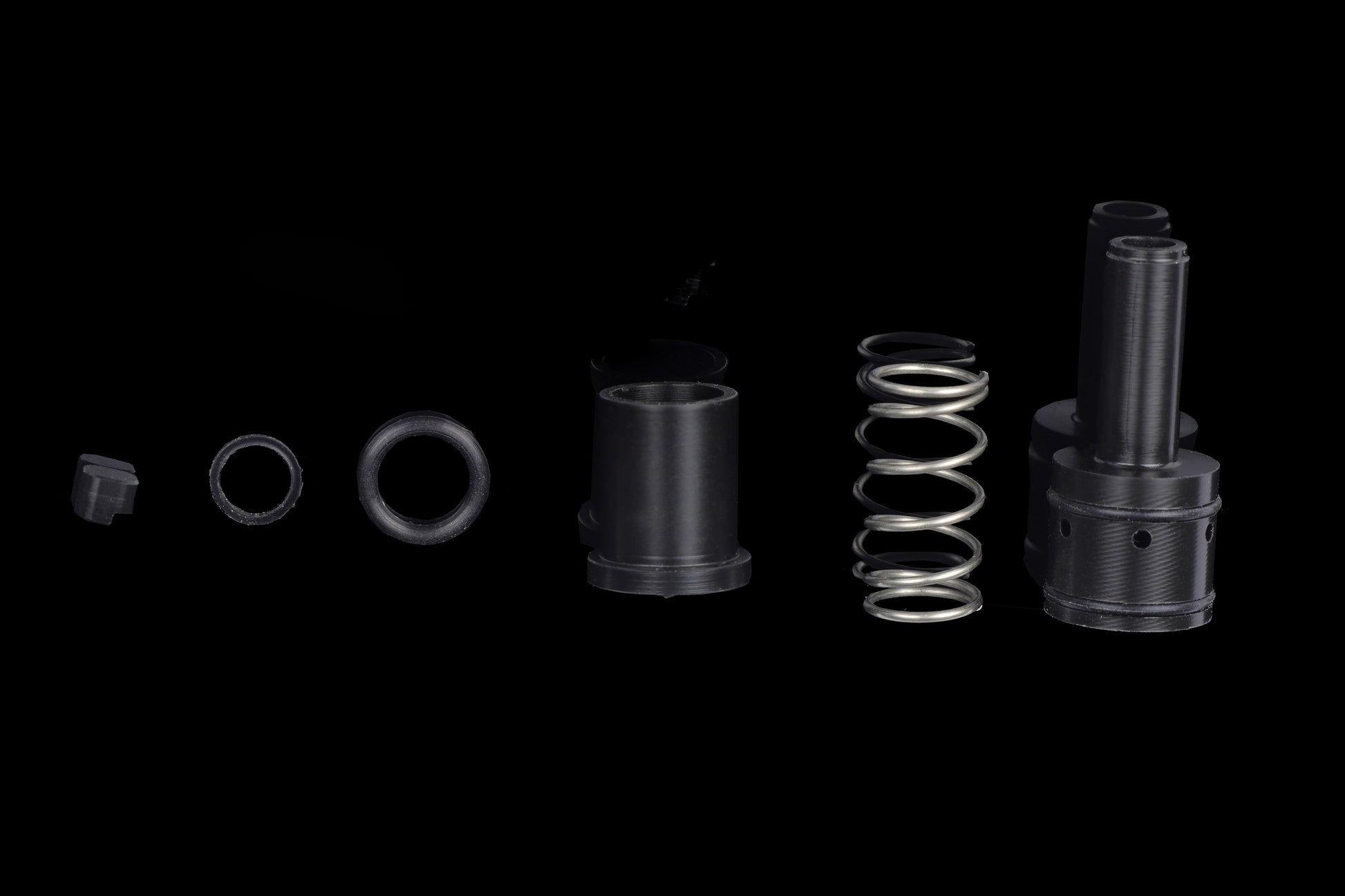

The kit contains:

1 × assembled V31 POM nozzle with two factory-installed 11 × 1 mm O-rings;

1 × nozzle spring;

1 × O-ring positioning stabilizer;

1 × 7×1.5 mm O-ring;

1 × POM hop-up chamber spacer;

1 × POM inner-barrel stabilizer.

Installation Instruction:

https://help.gatee.eu/space/GHC/4913168397/PTX+V31+Nozzle+Installation+Manual
